Leak Detection System

Exagate Leak Detection System is a specialized solution tailored to identify and promptly alert users to leaks occurring at specific points or within designated zones. Offering seamless integration, alarm notifications, and remote management capabilities, this system provides a reliable and adaptable solution for detecting leaks in various environments. By enhancing facility safety, resilience, and operational efficiency, Exagate Leak Detection System offers peace of mind and proactive leak management.



Why Exagate Leak Detection System?

· Modular and scalable design
· 24/7 monitoring and remote access
· Trusted in Tier III & IV data centers globally
· Industrial-grade hardware
· Seamless integration with PDU and DCIM

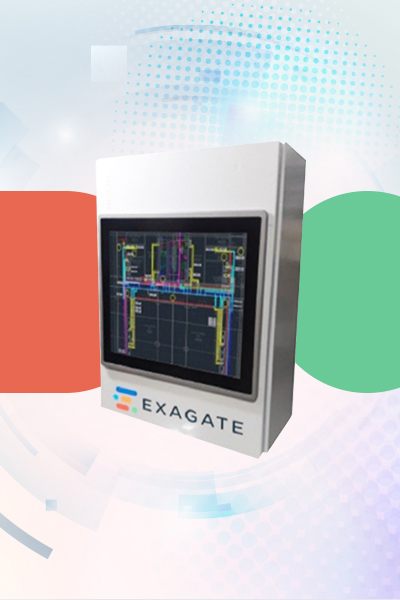

SYSG5001

Leak Detection System Automation Panel

SYSG5001 Liquid Detection System Automation Panel can visualize the information it receives from water, acid-base, oil, and other liquids with its 15” interface for the LCD screen, and alarm signals are transmitted to the user.

  • 15” or 10” Industrial panel display

  • 8 media graphics can be loaded

  • 256 zone definition

  • Internal backup power supply unit

  • Redundant operation both in hardware and software

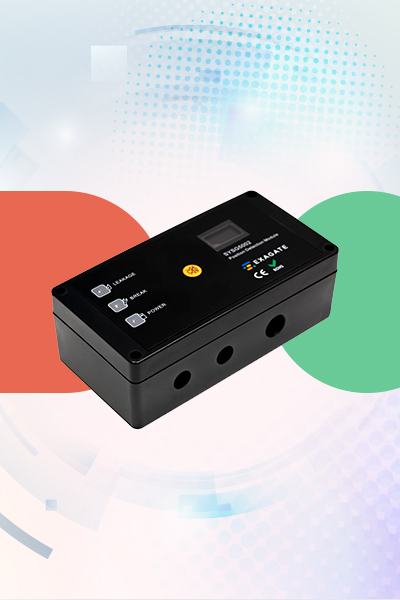

SYSG5002

Positioning leak detection module.

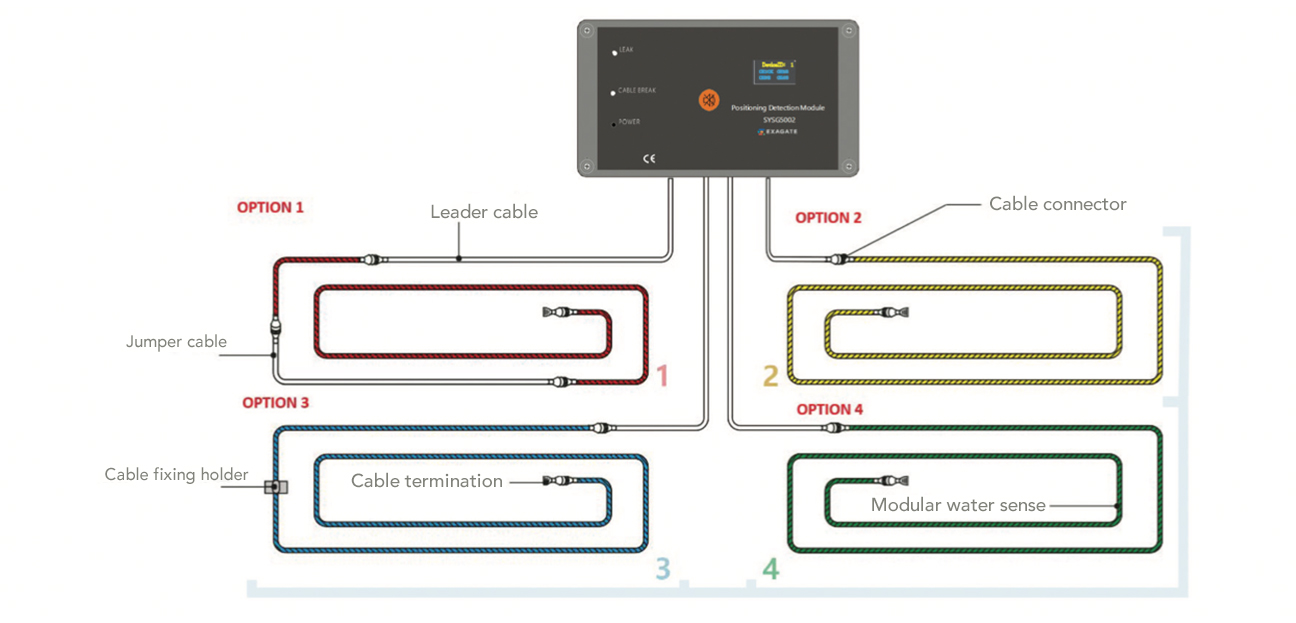

The SYSG5002 Positioning Detection Module can detect the leakage of water, acid-base, oil and other liquids, and connect the sensing cable up to 1500 meters. When a liquid leak is detected, the leak location is displayed via the LCD screen and the relay alarm signal is issued.

  • Detection cable can be extended up to 1500m for comprehensive coverage.

  • LCD screen provides real-time equipment status and precise leakage alarm positioning.

  • Remote alarm and control enabled via MODBUS communication protocol for seamless integration with existing systems.

  • Simple setup and operation for user convenience and efficiency.

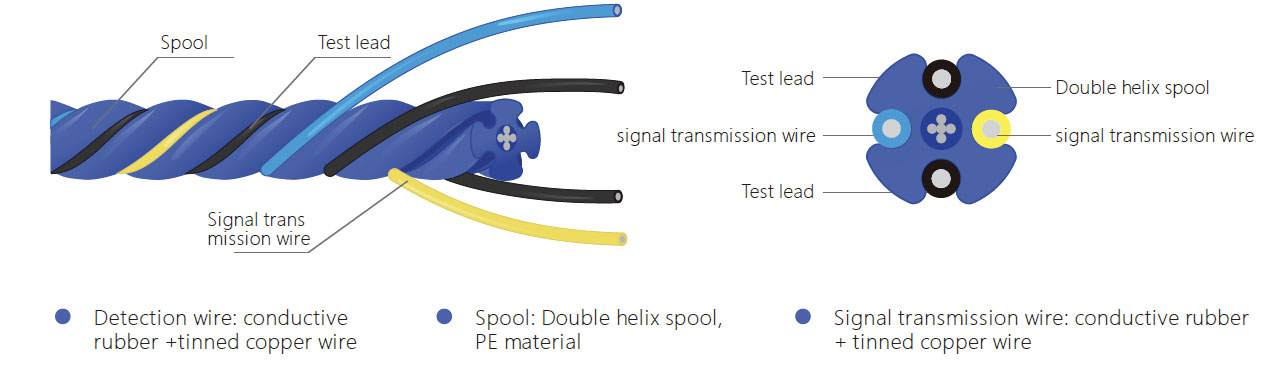

SYSG5100

Positioning Water Sense Cable

SYSG5100 Positioning Water Sense Cable is used to detect conductive liquid leakage. Can connect directly to most alarm servers. When it detects liquid ingress anywhere along the cable, the alarm will be activated. The water sensing cable can provide timely and accurate responses to water leakage.

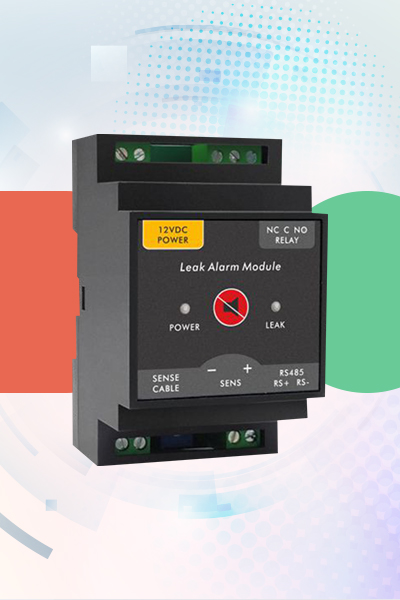

SYSG5120

Alarm Module Zone Type

SYSG5120 Alarm Module Zone Type is a multifunctional leak detection equipment that can connect 500 meters detection cable.

It not only connects to the two-core detection line, but is also compatible with other leak detection probes. With output relay contact signal and RS485 communication function, remote alarm and remote equipment control. It can be integrated with various monitoring systems to achieve.

  • Compact design for easy guide rail mounting in various settings.

  • Total cable length of 500 meters for extensive coverage.

  • One-click silence and automatic reset function for quick response and minimal downtime.

  • RS485 MODBUS communication ensures seamless integration.

  • Simple setup and operation enhance user convenience and efficiency.

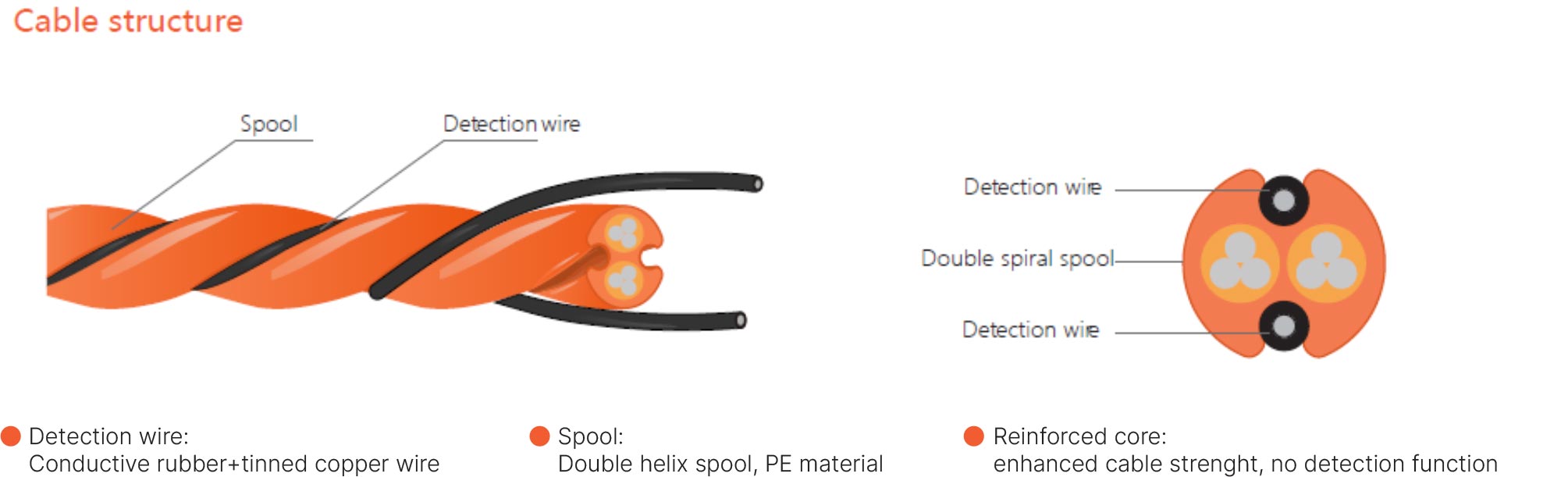

SYSG5090

Zone Water Sense Cable

The zone water sense cable is used to detect the leakage of conductive liquid.

It can be directly connected to most of the alarm modules.

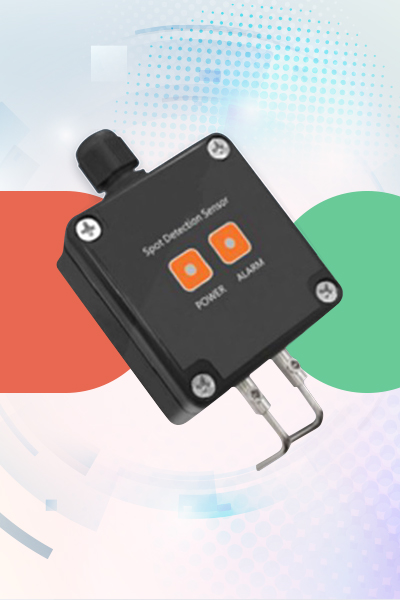

SYSG5010

Point Type Water Immersion Sensor

SYSG5010 Point Type Water Immersion Sensor is an integrally designed water leak alarm device. The connecting cable and sensing cable are all easy to install and internally adjustable. You just need to adjust the sensing height of the sensing cable.

The sensor can be installed and used independently or used as a sensing cable with other water leak detection units. It can also be integrated with various monitoring systems.

  • Stainless steel detection probe ensures durability and accuracy.

  • Sensitivity adjustment function for customizable leak detection.

  • 12-24 VDC/AC power supply for versatile installation options.

  • Relay output for remote alarm control.

Inventory List

  • Product Code
  • Description
  • SYSG5003
  • Leak Detection System Automation Panel - 10’’
  • SYSG5001
  • Leak Detection System Automation Panel - 15”
  • SYSG5002
  • Positioning Leak Detection Module
  • SYSG5120
  • Total cable Length Of 500 Meters
  • SYSG5010-RS
  • Point Type Water Immersion Sensor With RS485
  • SYSG5010
  • 12-24 VDC/AC Power Supply For Versatile Installation Options
  • SYSG5180
  • Point Type Water Immersion Sensor Plastic Casing
  • SYSG5190
  • Point Type Water Immersion Sensor Stainless-Steel Guard Plate
  • SYSG5100
  • Positioning Water Sense Cable Reel - 500 Meters
  • SYSG5100-3M
  • Positioning Water Sense Cable - 3 Meters
  • SYSG5100-5M
  • Positioning Water Sense Cable - 5 Meters
  • SYSG5100-10M
  • Positioning Water Sense Cable - 10 Meters
  • SYSG5090
  • Zone Water Sense Cable Reel - 300 Meters
  • SYSG5090-3M
  • Zone Water Sense Cable - 3 Meters
  • SYSG5090-5M
  • Zone Water Sense Cable - 5 Meters
  • SYSG5090-10M
  • Zone Water Sense Cable - 10 Meters
  • SYSG5004-Z
  • Zone Leader Cable - 3 Meters
  • SYSG5004-P
  • Positioning Leader Cable - 3 Meters
  • SYSG5200-P
  • Positioning Jumper Cable Reel - 300 Meters
  • SYSG5200-P-3M
  • Positioning Jumper Cable - 3 Meters
  • SYSG5200-P-5M
  • Positioning Jumper Cable - 5 Meters
  • SYSG5200-P-10M
  • Positioning Jumper Cable - 10 Meters
  • SYSG5200-Z
  • Zone Jumper Cable Reel - 300 Meters
  • SYSG5200-Z-3M
  • Zone Jumper Cable - 3 Meters
  • SYSG5200-Z-5M
  • Zone Jumper Cable - 5 Meters
  • SYSG5200-Z-10M
  • Zone Jumper Cable - 10 Meters
  • SYSG5020-Z
  • Zone Termination Module
  • SYSG5020-P
  • Positioning Termination Module
  • SYSG5040
  • Cable Sockets
  • SYSG5060
  • Fixed Cable Holder (5 pcs)
  • SYSG5060-1
  • Fixed Cable Holder (100 pcs)
  • SYSGAC13
  • Signal Tower With Buzzer
