Environment Monitoring

SYSGuard 4001

Overview

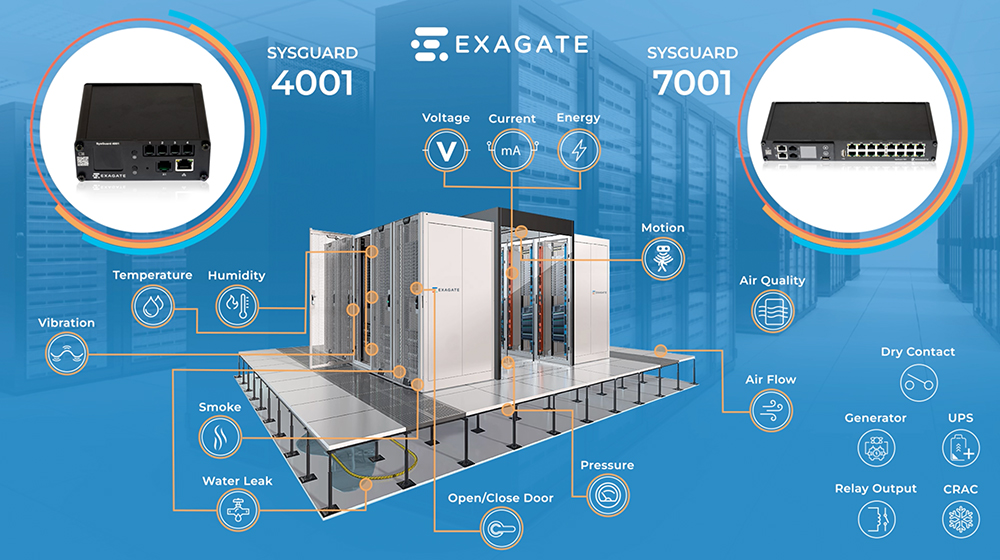

SYSGuard 4001 is a solution for Data Centers, computer or server rooms or any other location with IT-equipment that allows the monitoring of critical environmental parameters such as temperature, humidity, fluid leak, smoke, airflow, air quality, air pressure , rack vibration via a central unit and external sensors. Our compact solution is easy to setup and use and sends alerts in case user-defined thresholds values are exceeded. Our solutions help small, midsize, enterprise and colocation Data Centers to increase efficiency, raise productivity and improve reliability.

Compact Solution

SYSGuard 4001 allows the monitoring of critical environmental parameters such as temperature, humidity, water leak, smoke, etc., and the creation of relevant alarm scenarios by interpreting dry contact and relay connections, voltage control and related dry contact signals, thanks to its many sensor options in your computer rooms and small-scale data center. Thanks to its flexible structure, the main unit enables you to transform your computer room into a small or medium-scale Data Center in the future, while protecting your investment.

Temperature Sensor: Accurately measures ambient temperature and generates alerts for critical rises.
Humidity Sensor: Detects high humidity levels to prevent condensation risks.
Water Leak Sensor: Instantly detects any water leakage within your facility.
Voltage Sensor: Monitors voltage levels in electrical lines to ensure stability.
Current Sensor: Measures current values to prevent overloads.
Energy Sensor: Tracks energy consumption for efficiency analysis and cost management.
Dry Contact Input: Receives alarm or status signals from external systems.
Air Flow Sensor: Monitors airflow from CRAC or HVAC systems for optimal cooling performance.
Motion Sensor: Detects movement for security and safety applications.
Pressure Sensor: Monitors pressure levels in relevant systems and environments.
Open/Close Door Sensor: Tracks door status for security and access monitoring.
Smoke Sensor: Detects smoke presence to initiate early fire alarms.
Vibration Sensor: Monitors vibration levels in critical equipment for preventive maintenance.
Air Quality Sensor: Measures indoor air quality parameters for healthy environments.
CRAC Monitoring Sensor: Provides real-time data on your CRAC units for effective cooling management.
Generator Sensor: Monitors generator status to ensure backup power readiness.
UPS Sensor: Tracks UPS health and operational parameters for uninterrupted power.
Relay Output: Allows triggering of external devices based on sensor alarms.
Storage Capacity: 4 GB (expandable to 16 GB)
Compact modular design with color display
4 x Temperature & Humidity sensor inputs
1 x External sensor input
1 x Smoke sensor input
5 x Configurable inputs (Digital input/Analog input (0-15V) / Flood detect cable input)
2 x Relay outputs (NO/NC, Max 5A)
1 x RS-485
1 x 12V DC output (for external sensors)
1 x Ethernet port
Protocol support: HTTPS, MODBUS, SNMP, MQTT
GPRS, 2G & 4G with voice support
Ideal for compact environments
Cost-effective yet powerful solution
Integrated alarm and reporting tools
Third-party device management support
Compact Modular design 1x12VDC Output (for external sensors) Advanced alarm system
Graphic LCD 2x RS-485 ports Data monitoring, reporting
1x Temperature & humidity sensor input (X1) HTTPS-MODBUS-SNMP and MQTT support 3rd-part device management
4x External sensor inputs GPRS support
2x Relay outputs (NO/NC max 5A) 2G and 4G Support (Voice calling support for 4G)
