Environment Monitoring

SYSGuard 7001

Overview

SYSGuard 7001 is a solution for large and medium sized Data Centers and server rooms with IT-equipment that allows the monitoring of critical environmental parameters such as temperature, humidity, fluid leak, smoke, airflow, air quality, air pressure, rack vibration via a central unit and external sensors. Our solution is easy to setup and use and sends alerts in case user-defined thresholds values are exceeded. Thereby with our environment monitoring system is assisted for the increase in efficiency,productivity and reliability of Data Centers.

Advanced Solution

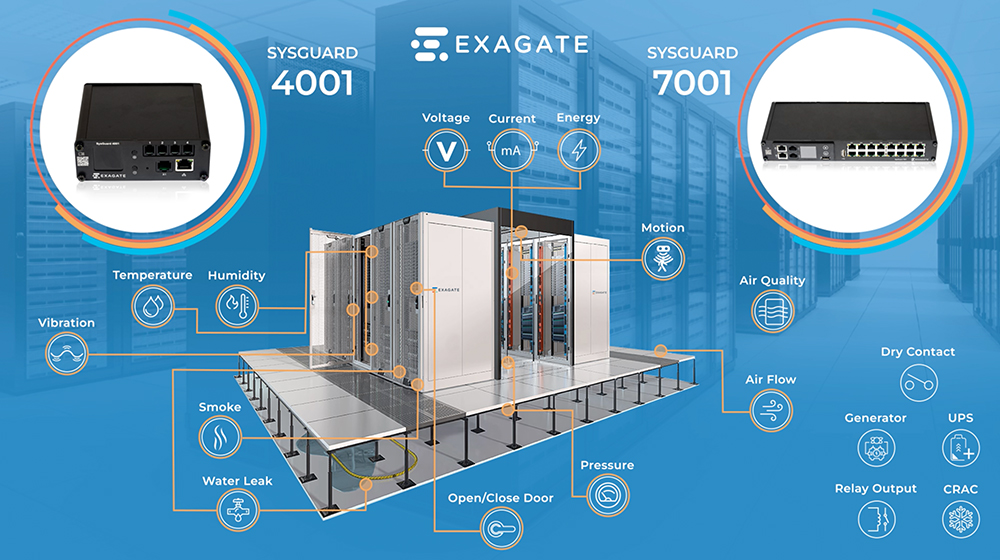

SYSGuard 7001, which enables the professional monitoring and management of environment parameters with its user-friendly interface, is an optional advanced centralized system that ensures the IT infrastructure of your medium and large-scale data center is secured with a wide variety of sensor options and 3rd party (external) device integration. It provides high-level monitoring and management with its management software.

Temperature Sensor: Accurately measures ambient temperature and generates alerts for critical rises.
Humidity Sensor: Detects high humidity levels to prevent condensation risks.
Water Leak Sensor: Instantly detects any water leakage within your facility.
Voltage Sensor: Monitors voltage levels in electrical lines to ensure stability.
Current Sensor: Measures current values to prevent overloads.
Energy Sensor: Tracks energy consumption for efficiency analysis and cost management.
Dry Contact Input: Receives alarm or status signals from external systems.
Air Flow Sensor: Monitors airflow from CRAC or HVAC systems for optimal cooling performance.
Motion Sensor: Detects movement for security and safety applications.
Pressure Sensor: Monitors pressure levels in relevant systems and environments.
Open/Close Door Sensor: Tracks door status for security and access monitoring.
Smoke Sensor: Detects smoke presence to initiate early fire alarms.
Vibration Sensor: Monitors vibration levels in critical equipment for preventive maintenance.
Air Quality Sensor: Measures indoor air quality parameters for healthy environments.
CRAC Monitoring Sensor: Provides real-time data on your CRAC units for effective cooling management.
Generator Sensor: Monitors generator status to ensure backup power readiness.
UPS Sensor: Tracks UPS health and operational parameters for uninterrupted power.
Relay Output: Allows triggering of external devices based on sensor alarms.
Storage Capacity: 4 GB (expandable up to 16 GB with SD card)
Compact modular design with color display
16 x Sensor inputs (up to 256 via daisy chain)
20 x Configurable inputs
8 x (Dry Contact (0-5V)/Analog input (0-10V) / Flood detect cable input)
12 x Isolated dry contact / 4 pcs Digital output (500mA)
4 x Relay outputs (NO/NC, Max 5A)
2 x RS-485 (1 pcs Isolated)
1 x 12V DC output (for external sensors)
2 x Ethernet Ports (redundant)
2 x USB port
Communication: HTTPS, MODBUS, SNMP, MQTT
GPRS, 2G & 4G support (with voice call support for 4G)
Comprehensive monitoring with advanced alarm system
Third-party device management support
Reliable real-time data monitoring & reporting
Scalable architecture for large infrastructures
Modular design 1 x Temperature & humidity sensor input (X1, X2) HTTPS-MODBUS-SNMP and MQTT support 3rd-party device management
Graphic LCD 20 x Configurable inputs 2G and 4G Support (Voice calling support for 4G)
16 x Sensors, RJ45 (up to 256 with daisy chain) 4 x Relay outputs (NO/NC max 5A) Advanced alarm system
SYSG7010 daisy chain or by using 1 x 12V DC Output (for external sensors) Data monitoring, reporting
SYSG7070 expansion module 2 x RS-485 ports GPRS support
